K125382N

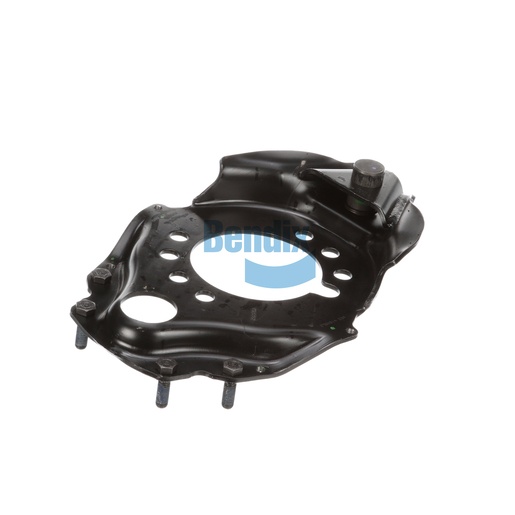

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a key component in Bendix foundation drum brakes, providing essential support and stability to the braking system. Designed with a robust structure, this assembly ensures that all brake components function harmoniously, enhancing overall performance. The design includes a combination of durability and precision engineering, crucial for maintaining the integrity of the braking system under heavy loads. This assembly plays a vital role in the effective application of brakes, ensuring safety and reliability on the road. Investing in this Spider / Pin Assembly ensures your braking system remains efficient and responsive. Source One Parts Center offers the best selection of genuine Bendix OEM parts, ensuring your commercial vehicle performs at its best.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.64 lb
