K125383N

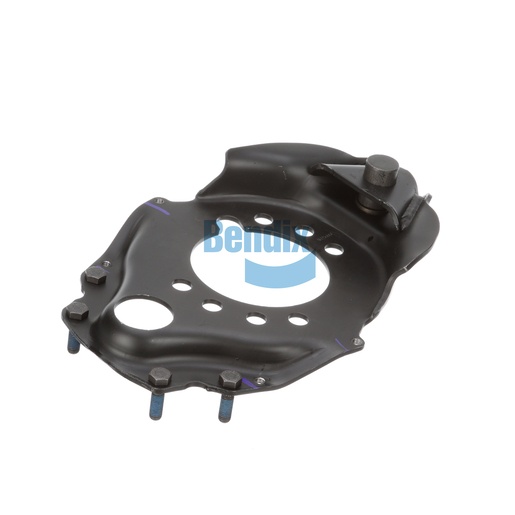

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly from Bendix is an essential part of your truck's braking system, designed to provide a secure attachment for brake shoes and other components. With a height of 16.06 inches and a width of 11.97 inches, this assembly is engineered for strength and stability. The assembly is constructed from high-quality materials, ensuring it withstands the demanding conditions of commercial driving. Weighing in at 11.73 pounds, this part is designed for easy installation while providing the durability necessary for long-term use. With its reliable performance, this assembly plays a critical role in maintaining your vehicle's braking efficiency. For genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and authenticity are guaranteed.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.73 lb
