$519.95
$623.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

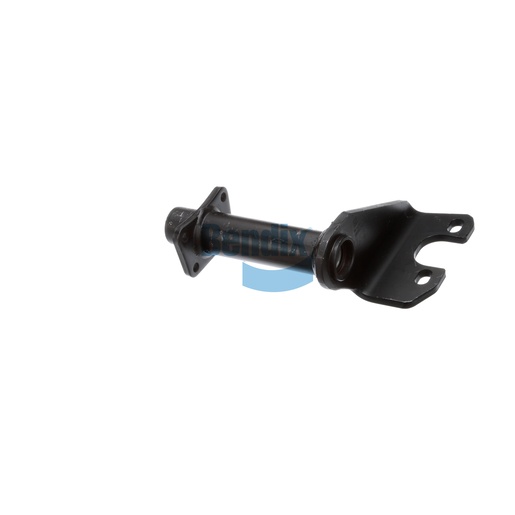

Optimize the performance of your truck's braking system with the Bendix Bracket Assembly, designed for exceptional strength and durability. This assembly plays a vital role in providing support for various brake components, ensuring they function effectively under heavy loads. Its innovative design features scalloped arms and high-quality bushings, enhancing stability and performance in demanding environments. Manufactured to meet stringent OEM standards, this bracket assembly guarantees a precise fit and easy installation, making it an essential part of your fleet's maintenance. The robust construction ensures it can handle the rigors of commercial use, contributing to the overall safety and reliability of your vehicle. Source One Parts Center is your trusted partner for genuine Bendix parts, offering the best solutions for your commercial truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
14.50
Length (Basic Weld Set)
2.563 IN
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
368.3 mm (14.5 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
92° CW
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
15.5 lb
