This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

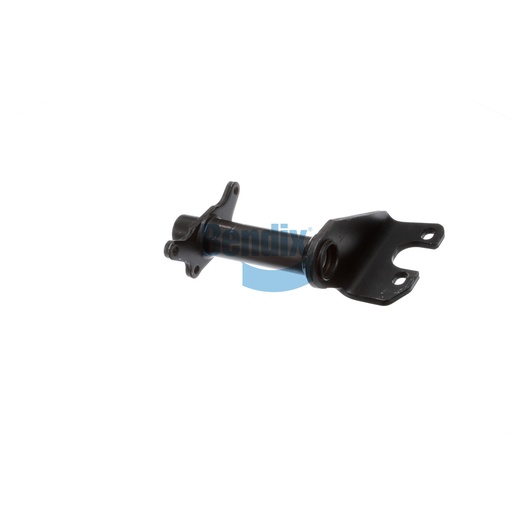

The Bendix Bracket Assembly is a vital component for foundation drum brakes, providing essential support that ensures reliable braking performance in commercial vehicles. Constructed with high-quality materials, this assembly features a scalloped arm style and robust bushings, delivering strength and durability for heavy-duty applications. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 92 degrees clockwise, it is engineered for precise alignment and fitment across various truck models. When you choose Source One Parts Center for your Bendix OEM parts, you're guaranteed quality and reliability in every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
14.50
Length (Basic Weld Set)
2.563 IN
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
368.3 mm (14.5 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
92° CW
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
15.7 lb
