K131588N

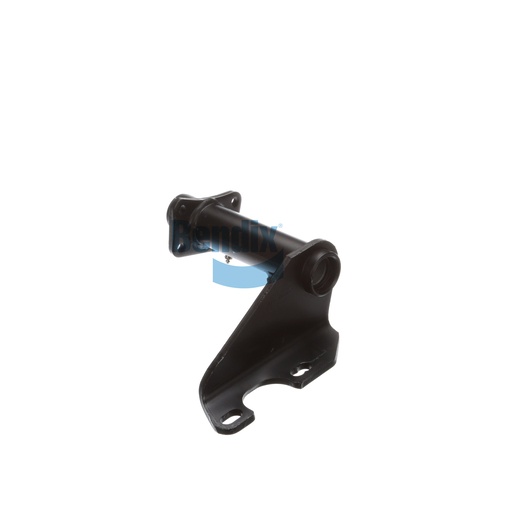

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a critical component that ensures the stability and efficacy of your vehicle's foundation drum brakes. Designed with a gusset angle of 40° and a camshaft bracket angle of 72° CCW, this assembly provides strong support for various braking components. Measuring 13.25 inches in centerline length and weighing 13.4 lbs, it is made from durable materials that can withstand the rigors of heavy-duty use. The assembly features a single gusset and is designed for easy installation, making it an ideal choice for fleet operators who need reliable and efficient maintenance solutions. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best place to ensure you receive quality components tailored for optimal performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Height
292.0 mm (11.5 in)
Length
337.0 mm (13.27 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.4 lb
