$169.95
$203.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

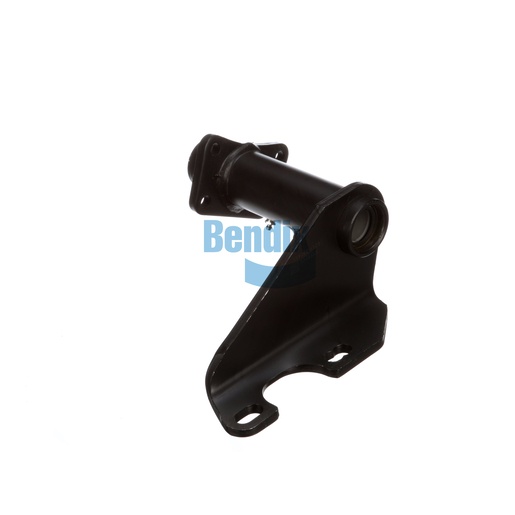

The Bendix bracket assembly is a vital component of your truck's braking system, ensuring stability and support for brake components. With its robust design, this bracket assembly is engineered to withstand the demands of heavy-duty use, providing long-lasting performance and reliability. It is compatible with various braking systems, making it a versatile choice for fleet maintenance. Properly maintaining brake components is crucial for safety, and this bracket assembly helps ensure that your brakes function effectively. Regular inspections and timely replacements can prevent costly downtime and ensure the safety of your fleet. When looking for genuine Bendix OEM parts, Source One Parts Center is your trusted source, dedicated to providing quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.3 lb
