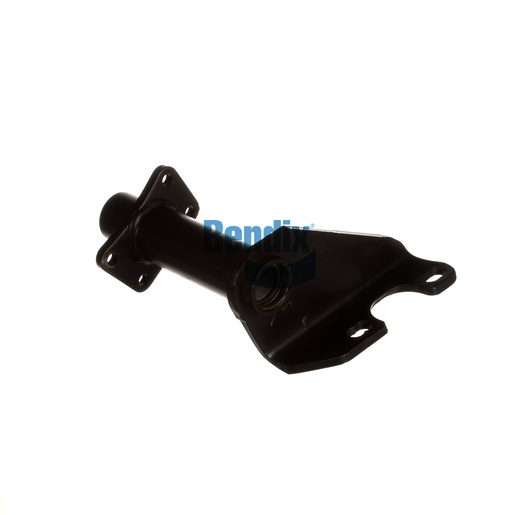

K133789N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a key support component for air chambers and camshafts in commercial vehicle braking systems. Its high-quality construction offers exceptional strength and durability, ensuring that your braking system operates efficiently. With a design that allows for straightforward installation, this bracket assembly helps minimize downtime and maintenance efforts, which is crucial for fleet management. Measuring 365 mm in width and weighing 5.7 kg, it is built to handle the demands of heavy-duty applications. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
