K137442N

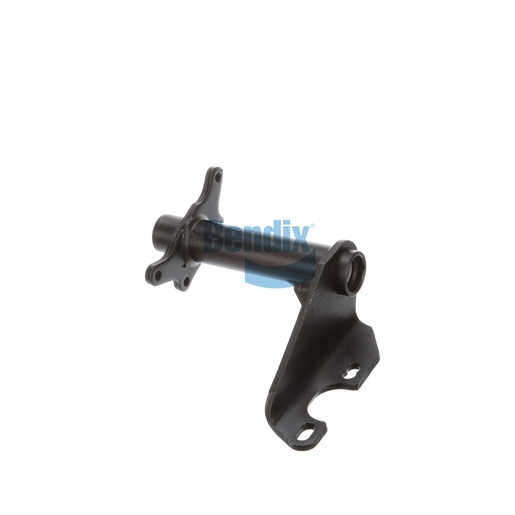

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is expertly engineered to provide exceptional support for foundation drum brake systems in heavy-duty trucks. With a robust single gusset design, this assembly enhances the structural integrity of the brake system, ensuring reliable operation even in the most demanding conditions. The combination of nylon and bronze bushings reduces friction and wear, contributing to a longer lifespan for your braking components. This assembly is designed for easy installation, allowing for efficient maintenance and minimal downtime for your vehicles. Its precise engineering and high-quality materials ensure that it meets the rigorous demands of commercial use, making it a smart investment for fleet operators. When seeking the best in OEM parts, Source One Parts Center offers genuine Bendix components that provide the performance and reliability you need.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
106° CCW
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.55 lb
