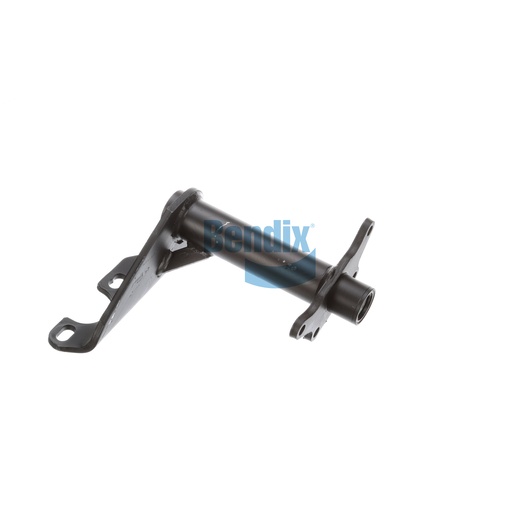

K137443N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential part of your vehicle's foundation drum brake system, providing the necessary support for air chambers and camshafts. With its durable construction and precise engineering, this assembly is designed to withstand the rigorous demands of heavy-duty applications. The single gusset design combined with its robust materials ensures longevity and reliability, reducing the risk of component failure. This bracket is easy to install, allowing for quick assembly and efficient maintenance of your braking system. By choosing this high-quality bracket assembly, you can rest assured that your braking components are securely supported, enhancing overall safety and performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and dependability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
106° CW
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.39 lb
