K138331N

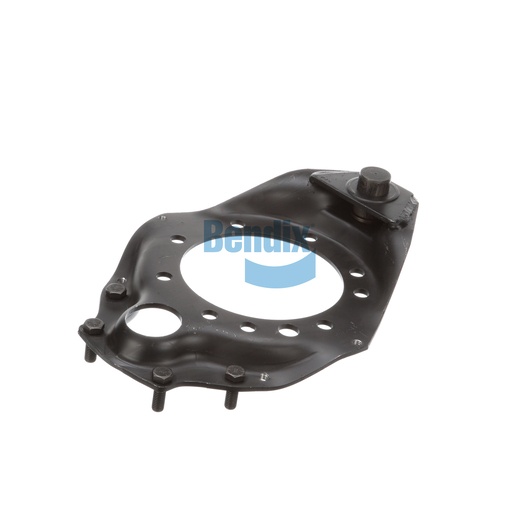

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a vital component of the foundation drum brake system, designed to provide structural integrity and secure connections for brake components. This Bendix assembly is constructed for durability and reliability, ensuring that it can withstand the stresses of heavy-duty applications. Featuring a robust design, this assembly facilitates smooth operation and enhances the overall performance of braking systems. With a net weight of 10.73 lbs, it is engineered to provide the necessary support while maintaining efficiency. This assembly is designed for easy installation, making it an ideal choice for fleet maintenance and repairs. Its compatibility with a variety of commercial vehicles ensures that it meets diverse operational needs. Source One Parts Center is the best option for purchasing genuine Bendix OEM parts, delivering quality and performance for your vehicles.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
304.8 mm (12.0 in)
Height
408.9 mm (16.1 in)
Harmonized System (HS) Code
870830
Length
91.5 mm (3.6 in)
Country of Origin
United States
Weight
10.73 lb
