K140327N

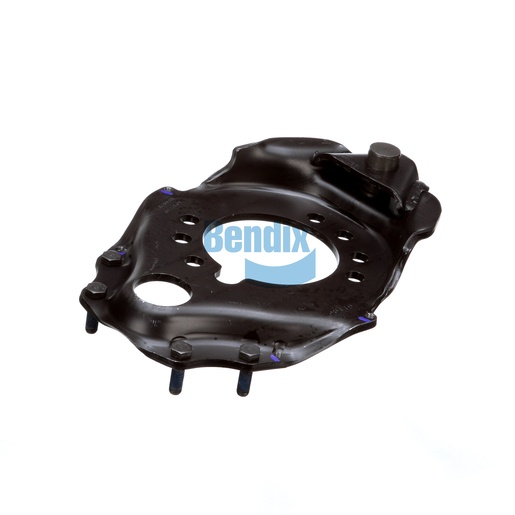

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly is essential for maintaining the structural integrity of your vehicle's drum brakes. Designed to provide reliable support and alignment for brake shoes, this assembly is crafted from durable materials to withstand the high demands of commercial applications. Its robust design ensures effective braking performance, enhancing the safety of your vehicle. The assembly is also engineered for easy installation, making it convenient for maintenance and repair tasks. With its combination of strength and reliability, this spider/pin assembly is a must-have for any fleet operator. Source One Parts Center is your best source for genuine Bendix parts, where we focus on quality and customer satisfaction.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
16.87 lb
