K140422N

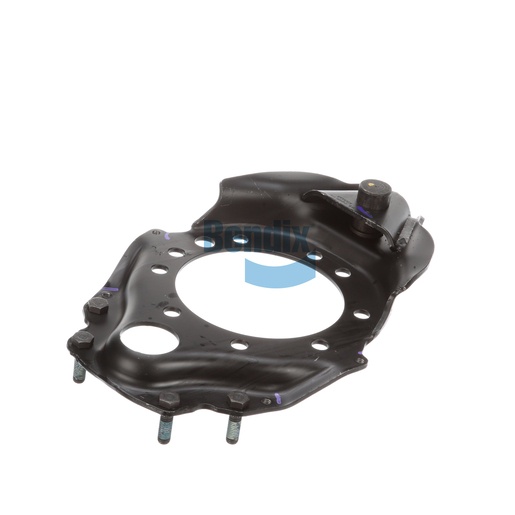

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly for Bendix Foundation Drum Brakes is engineered for optimal performance and reliability in commercial vehicles. This component plays a vital role in connecting various brake parts, ensuring efficient operation during braking. Designed with a sturdy construction, it guarantees longevity and reduces the risk of failure under heavy loads. With a net weight of 5.0 kg and precision-engineered dimensions, this assembly ensures a perfect fit for your braking system. For operators who prioritize safety and performance, choosing genuine Bendix OEM parts is crucial. Source One Parts Center is the ultimate destination for high-quality components, ensuring your vehicle remains roadworthy and dependable.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.03 lb
