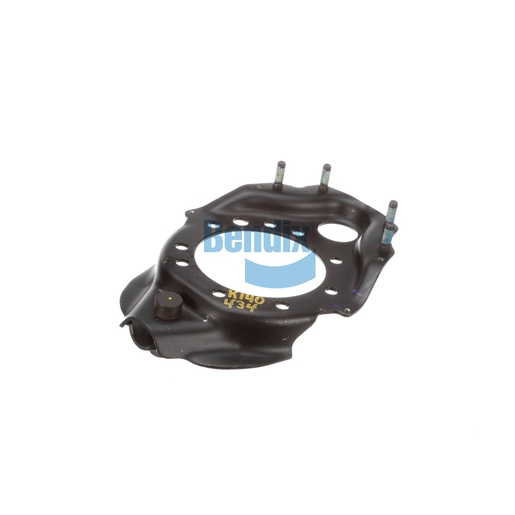

K140434N
Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly is an essential component in the braking system of commercial vehicles, ensuring stability and effective brake function. This assembly is designed to provide robust support for brake components, crafted from high-strength materials to withstand heavy loads and rigorous use. With a net weight of 5.0 kg, this spider assembly is engineered for easy installation, making it an excellent choice for fleet maintenance or individual repairs. Its precise dimensions ensure compatibility with a wide range of truck models, allowing for seamless integration into existing systems. For genuine Bendix parts that guarantee reliability and performance, Source One Parts Center is your best source.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.01 lb
