K140435N

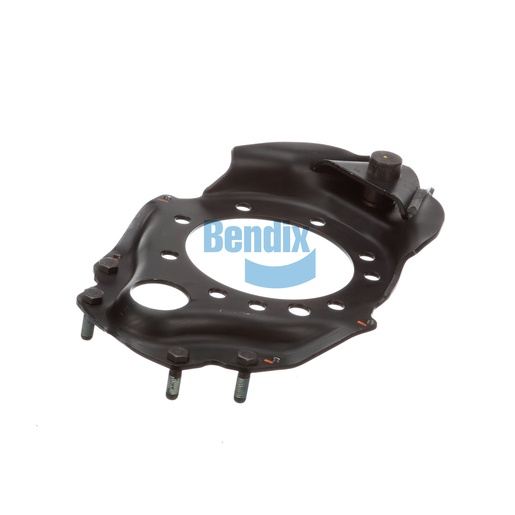

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a critical component of the foundation drum brakes, designed to provide robust support and reliable performance in commercial vehicles. Manufactured in the United States, this assembly is built to withstand the demands of heavy-duty applications while ensuring optimal brake operation. With its durable construction, it helps maintain the integrity of the braking system, providing the necessary support for brake shoes and camshafts. The thoughtful design allows for easy installation, minimizing downtime and ensuring your vehicle operates safely and efficiently. Trust Source One Parts Center for your genuine Bendix OEM parts, where quality and reliability are our top priorities.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.18 lb
