K160099N

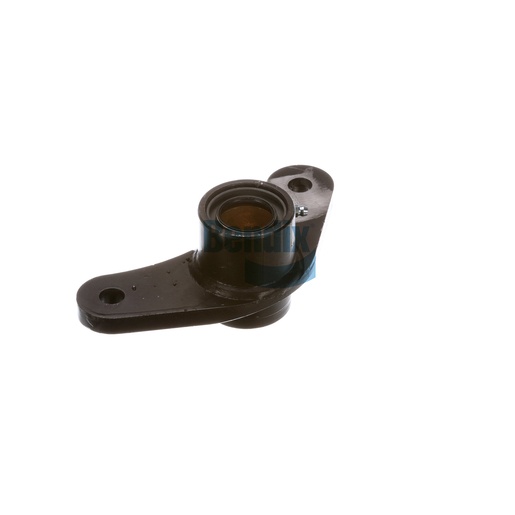

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential structural component in the foundation drum brake system, providing crucial support for air chambers and camshafts. Featuring a full arm style and a single gusset, this assembly is designed for enhanced strength and durability, ensuring that it can withstand the demanding conditions of commercial use. With a camshaft bracket angle of 40° and a gross weight of 1.5 kg, it is engineered for precise alignment and effective load distribution. This assembly is versatile and compatible with a range of vehicles, making it an ideal choice for fleet maintenance and repairs. For reliable brake components, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring exceptional quality for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
429.0 mm (16.89 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
3.3 lb
