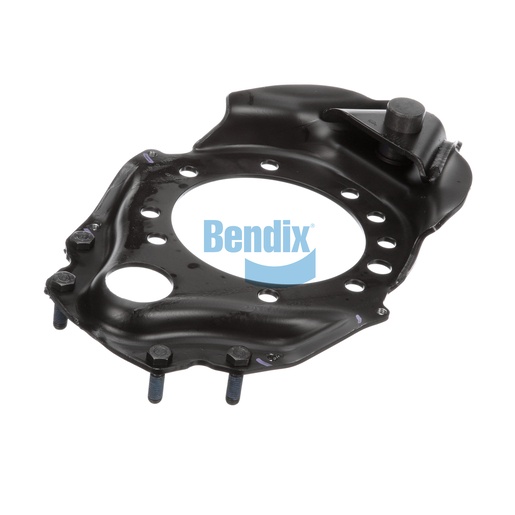

K161077N
Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a critical component in your vehicle's braking system, ensuring the proper functioning of the drum brakes. This assembly is designed with precision to provide the necessary support and alignment for effective braking performance. With a robust design that withstands the rigors of heavy-duty applications, this spider assembly is engineered to enhance the reliability and efficiency of your braking system. Its durable construction minimizes wear and tear, ensuring longevity and consistent performance. By integrating this assembly into your braking system, you can enhance safety and control while driving. For genuine Bendix OEM parts, Source One Parts Center is the premier choice, providing high-quality components that you can trust.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
10.97 lb
