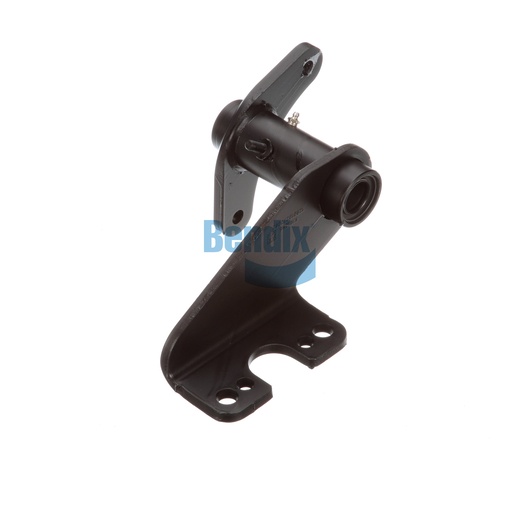

K161086N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component in your Bendix drum brake system, meticulously designed to provide optimal support and alignment for effective braking performance. This part features a scalloped arm style and nylon bushings, ensuring durability and resistance to wear even under the most demanding conditions. Designed with a camshaft bracket angle of 323° CCW and a slack length of 5.50 inches, it guarantees precise positioning that enhances the overall functionality of your braking system. Weighing approximately 9.93 pounds, this assembly balances strength with lightweight convenience, facilitating easier installation and maintenance. For those in need of authentic Bendix parts, Source One Parts Center is your best choice for sourcing high-quality OEM components that ensure your commercial vehicle operates safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
213.0 mm (8.39 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CCW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.93 lb
