K161087N

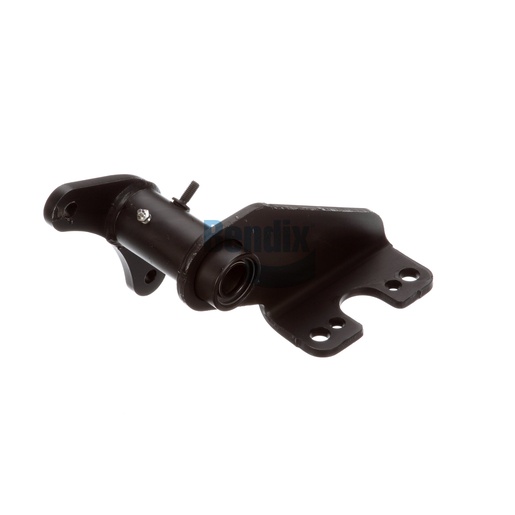

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of the braking system that provides structural support and ensures proper alignment of brake components. Built with high-quality materials, this assembly is designed to withstand the demands of heavy-duty applications, ensuring long-lasting performance and reliability. Its scalloped arm style and durable nylon bushings offer enhanced strength and stability, making it ideal for various commercial vehicle applications. The straightforward installation process minimizes downtime, allowing fleet operators to maintain their vehicles efficiently. When you need genuine Bendix parts, Source One Parts Center is your best choice, offering quality products and unmatched customer support.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
213.0 mm (8.39 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.05 lb
