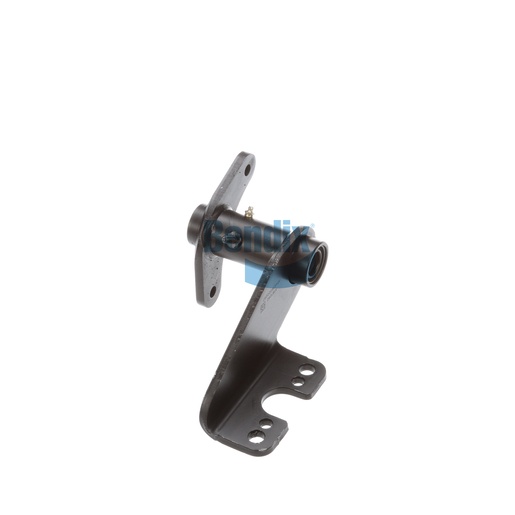

K161092N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key component in the foundation drum brake system, designed to offer essential support and ensure proper alignment for optimal braking efficiency. Crafted with a full arm style and featuring a scalloped design, this assembly boasts both strength and functionality, making it ideal for heavy-duty commercial vehicles. The durable construction, combined with nylon bushings, allows for smooth operation and minimizes wear over time. With precise dimensions and a weight of 4.5 kg, this bracket assembly is tailored for easy installation and long-lasting performance. Choosing genuine Bendix OEM parts like this Bracket Assembly is vital for maintaining the safety and efficiency of your braking system. Source One Parts Center is your top source for authentic Bendix parts, ensuring you receive high-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
213.0 mm (8.39 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
324° CCW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.95 lb
