K161093N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

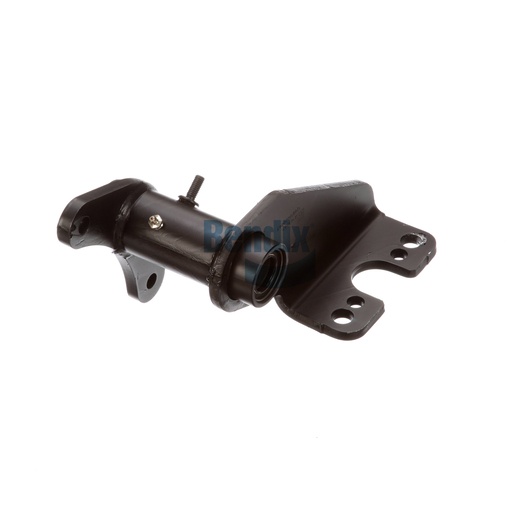

The Bendix Bracket Assembly is essential for supporting and securing the components of the braking system in commercial vehicles. Designed with a scalloped arm style, this assembly offers enhanced strength and stability, making it suitable for heavy-duty applications. The high-quality construction ensures longevity, while the nylon bushings help reduce friction and wear. This bracket assembly is engineered for easy installation, allowing for quick maintenance and repairs to minimize vehicle downtime. With its reliable performance, this assembly is a smart choice for any fleet operator. Source One Parts Center is the best destination for genuine Bendix parts, ensuring you receive exceptional quality and support.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
213.0 mm (8.39 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
324° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.97 lb
