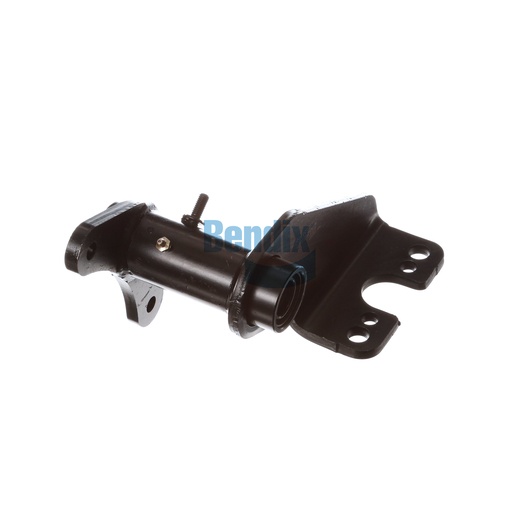

K161097N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is a vital component for maintaining the effectiveness of your Bendix drum brake system. With its scalloped arm style, this assembly provides robust support that is essential for optimal braking performance. Designed to withstand the rigors of heavy-duty applications, it features a length of 8.63 inches and a compact width of 14.37 inches, ensuring a perfect fit for your vehicle. Weighing 10.47 lbs, this durable part is manufactured with precision in the United States, allowing for seamless integration into your brake system. The assembly plays a critical role in aligning the air chamber and camshaft, which are key to effective brake action. By choosing this genuine Bendix part, you are investing in the reliability and safety of your commercial vehicle. Source One Parts Center is your premier source for authentic Bendix OEM parts, guaranteeing quality and performance for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
219.0 mm (8.62 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
324° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.47 lb
