This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

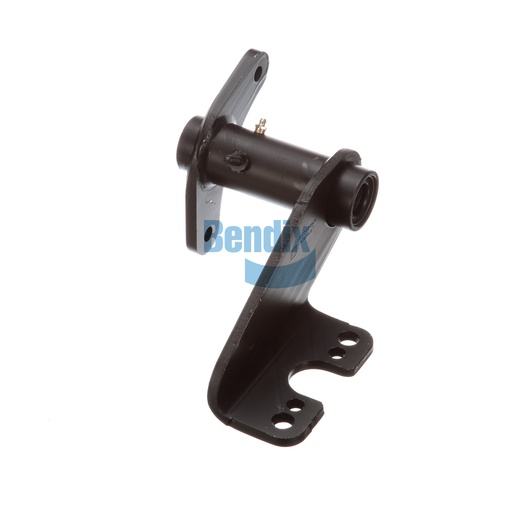

The Bracket Assembly from Bendix is a critical component for foundation drum brakes, ensuring durability and reliability in demanding commercial applications. This assembly features a scalloped arm style with a single gusset design, engineered for optimal strength and stability. With a camshaft bracket angle of 323° CCW and dimensions of 9.02 inches in length, it is designed for easy installation and adaptability to various vehicle configurations. Weighing 9.95 lbs, this bracket assembly is built to withstand the rigors of heavy-duty use, providing consistent performance and safety. For those in need of genuine Bendix OEM parts, Source One Parts Center is the ultimate destination, providing authentic components that enhance vehicle performance and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
229.0 mm (9.02 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CCW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.00
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.95 lb
