This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

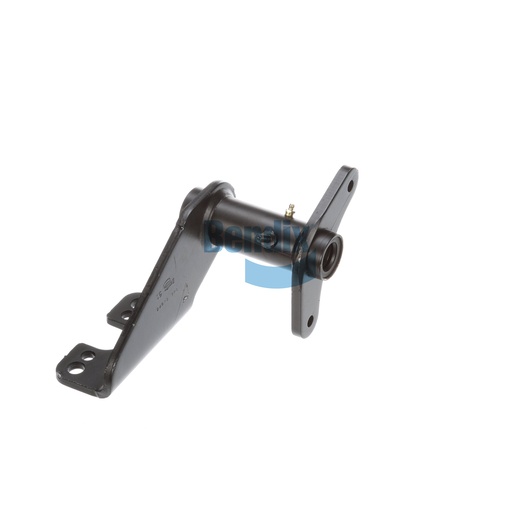

The Bracket Assembly is a vital component for the effective operation of commercial vehicle brake systems. Designed with a scalloped arm style, it features nylon bushings that provide excellent wear resistance and smooth operation. The assembly allows for an adjustable slack length of 5.50 inches, ensuring compatibility with various brake configurations. With a camshaft bracket angle of 323° CW, it is engineered for optimal alignment and functionality. The robust construction, weighing 10.05 lbs, ensures that this assembly can withstand the rigorous demands of heavy-duty applications. For sourcing the best quality Bendix OEM parts, Source One Parts Center is your premier destination, ensuring your vehicles are always road-ready.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
229.0 mm (9.02 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.00
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.05 lb
