K161121N

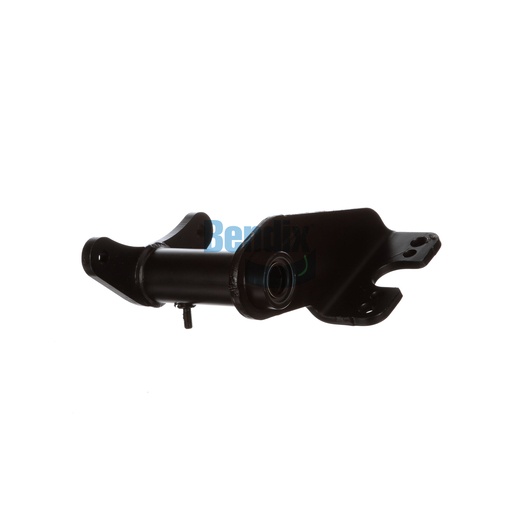

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component designed to enhance the performance of your vehicle's braking system. With a scalloped arm style and a camshaft bracket angle of 114° CW, this assembly ensures precise alignment and stability, which are critical for effective braking. Measuring 9.37 inches from centerline to centerline, it is engineered for compatibility with various applications, making it suitable for heavy-duty use. The inclusion of nylon bushings enhances durability and reduces friction, contributing to the longevity of your braking system. By choosing this high-quality bracket assembly, you are investing in the safety and efficiency of your vehicle. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring that you receive quality components that meet your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Camshaft Bracket Angle
114° CW
Length
229.0 mm (9.02 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.37
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.5 lb
