K161381N

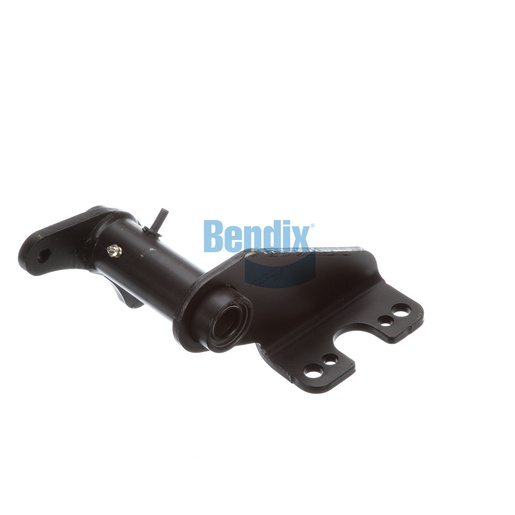

Bracket Assembly
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Bracket Assembly is an essential component for foundation drum brakes, providing critical support for air chambers and camshafts in commercial vehicles. With a scalloped arm style and durable nylon bushings, this assembly ensures optimal alignment and functionality within the braking system. Manufactured in the United States, it meets high-quality standards, offering reliability and longevity in demanding applications. Weighing approximately 4.8 kg, it strikes a balance between strength and manageable installation. This bracket assembly is designed to enhance the overall braking efficiency, contributing to the safety and performance of your vehicle. When it comes to sourcing quality components, Source One Parts Center stands out as the premier choice for genuine Bendix OEM parts, ensuring you receive the best for your commercial vehicle requirements.

SPECIFICATIONS

VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
229.0 mm (9.02 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
314° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.60
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.56 lb
