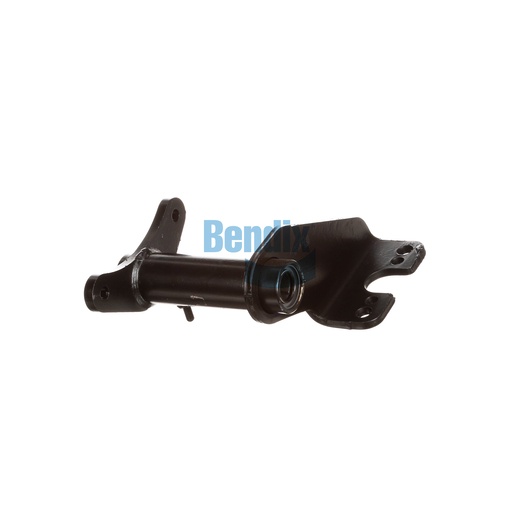

K161385N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly crafted to provide essential support for your vehicle's braking system, ensuring optimal performance and safety. This assembly is designed specifically for foundation drum brakes, featuring a scalloped arm style that enhances structural integrity while reducing weight. With precise dimensions that facilitate easy installation, this bracket assembly is built to withstand the harsh conditions often encountered on the road. Its durable construction and high-quality materials guarantee longevity and reduced maintenance needs, making it a smart investment for fleet operators and truck drivers alike. Source One Parts Center is your trusted source for genuine Bendix OEM parts, delivering top-notch quality and reliability for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length (Centerline to Centerline) [IN]
10.25
Length
229.0 mm (9.02 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.61 lb
