K161388N

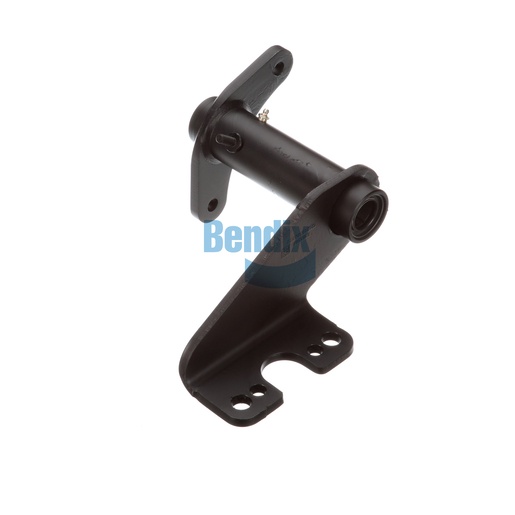

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial support element in the foundation drum brakes of commercial vehicles. Engineered for strength and durability, this assembly is designed to withstand the rigors of heavy-duty use while providing essential support for air chambers and camshafts. With a single gusset and scalloped arm style, it enhances the structural integrity of the braking system, ensuring reliable performance under various conditions. Its precise dimensions and robust construction contribute directly to improved braking efficiency, a crucial factor for vehicle safety. This bracket assembly is a dependable choice for maintaining the integrity of your brake system. For those seeking top-quality components, Source One Parts Center offers the best selection of genuine Bendix OEM parts, ensuring that your vehicle remains safe and efficient.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length (Centerline to Centerline) [IN]
10.71
Length
229.0 mm (9.02 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CCW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.76 lb
