K168950N

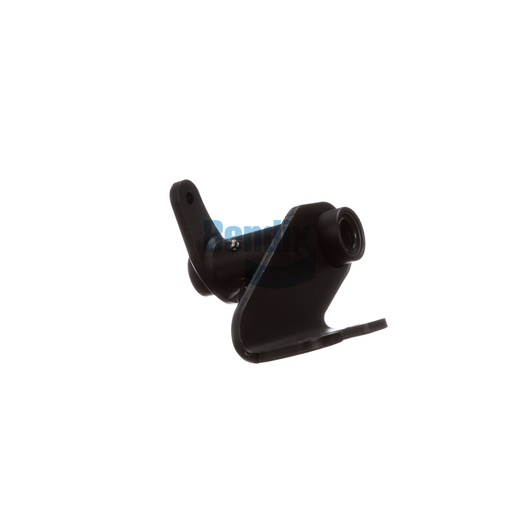

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component for foundation drum brakes, designed to provide stability and support for brake systems. Constructed with high-quality materials, this bracket ensures a secure fit and reliable performance under heavy loads. With a focus on durability, it is engineered to withstand the demanding conditions often faced by commercial vehicles. Its precise design allows for easy installation, making it an ideal choice for both maintenance and repair tasks. A strong bracket assembly enhances the overall braking system by ensuring that all components function harmoniously, which is essential for safety and efficiency on the road. Regular inspection and replacement of the bracket assembly can help prevent brake system failures and maintain vehicle safety. For the highest quality in Bendix OEM parts, Source One Parts Center is your trusted source, ensuring you receive top-notch components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
213.0 mm (8.39 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.37
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.19 lb
