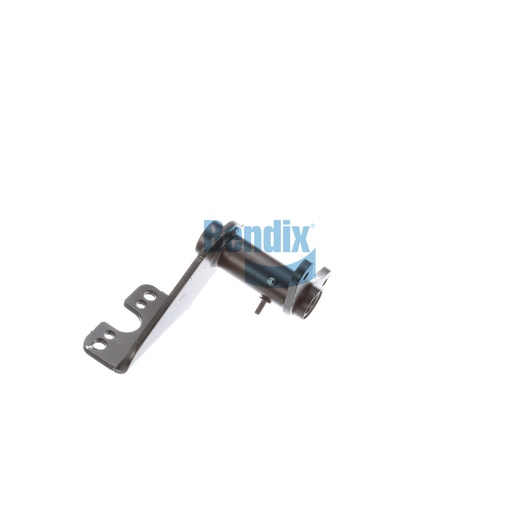

K168951N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component for maintaining the integrity of your vehicle's braking system. Designed with precision, this bracket provides essential support and stability to the brake components, ensuring optimal performance under demanding conditions. Made from high-quality materials, this bracket is engineered to withstand the rigors of heavy-duty use, offering durability and reliability that fleet operators can trust. Its easy installation process allows for efficient repairs, minimizing vehicle downtime and enhancing overall safety. The Bendix Bracket Assembly is an essential part for any commercial vehicle, ensuring that your braking system functions effectively. Source One Parts Center is your prime destination for genuine Bendix OEM parts, guaranteeing quality and dependability for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
213.0 mm (8.39 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
45° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.37
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.29 lb
