$749.95
$899.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

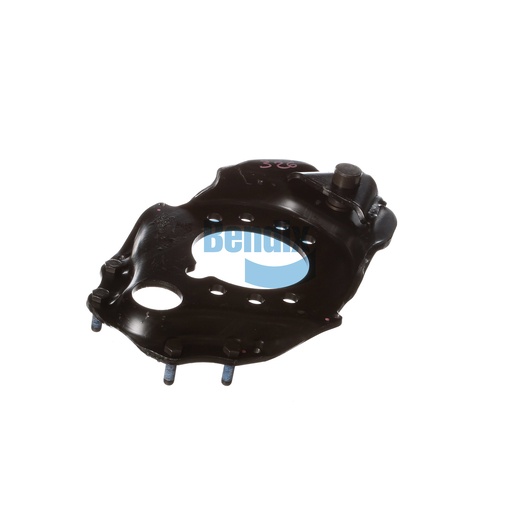

The Bendix Spider / Pin Assembly is a critical element of the foundation drum brake system, designed for durability and reliable performance in heavy-duty applications. This assembly ensures optimal alignment and function of the braking system, enhancing overall safety and reliability on the road. Weighing 7.5 kg, it is built to withstand the rigors of commercial vehicle operation, making it a preferred choice among fleet operators. For those seeking quality and dependability, Source One Parts Center is the best source for authentic Bendix OEM parts, ensuring your brake systems operate at peak performance.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
16.5 lb
