BNK1308EBA200
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

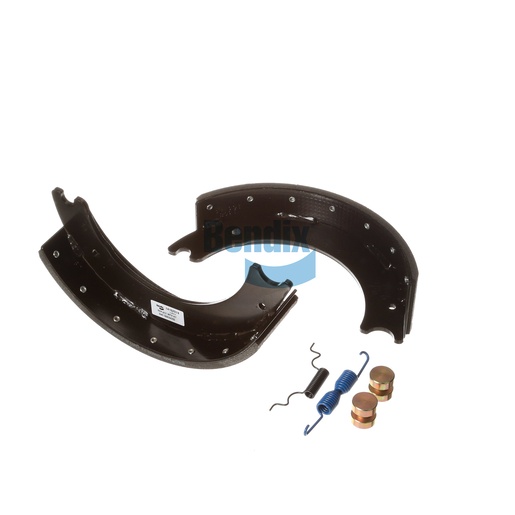

The Bendix Brake Shoe Kit is designed to provide a complete solution for replacing worn brake shoes in foundation drum brakes. This kit includes all necessary components for a successful installation, ensuring that you have everything needed for optimal performance. With a drum size of Ø 15.0 IN and a GAWR of 20K, this kit is perfect for heavy-duty applications, delivering reliable stopping power. The high-quality materials used in the construction of these brake shoes ensure durability and longevity, reducing the frequency of replacements. Source One Parts Center is the premier source for genuine Bendix OEM parts, guaranteeing you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
FMSI
1308
Number of Rivets
14
Shoe Quantity
2
GAWR
20K
Shoe Width
4.0 IN
Harmonized System (HS) Code
870830
Friction
BA200 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
18.45 lb
