BNK4515QBB200
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

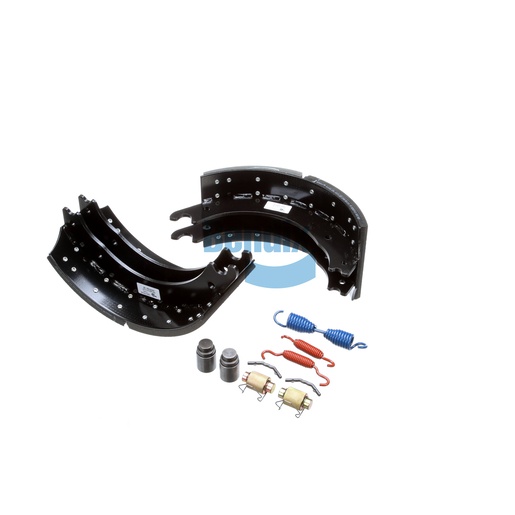

The Brake Shoe Kit delivers exceptional stopping power for heavy-duty applications, ensuring safety and reliability on the road. Designed specifically for Bendix foundation drum brakes, this kit features high-quality stamped steel shoes with an E-Coat finish, providing superior corrosion resistance and durability. With a shoe width of 7.0 inches and a drum size of 16.5 inches, this kit is engineered to meet the rigorous demands of commercial vehicles. It includes all necessary hardware and boasts a friction type of BB200, making it an ideal choice for fleets that prioritize performance and safety. The total weight of the kit is 17.1 kg (37.71 lb), making it robust yet manageable for installation. Source One Parts Center stands out as the premier destination for genuine Bendix OEM parts, ensuring that your commercial vehicles operate at peak performance.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
32
FMSI
4515
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BB200 (Bendix Basic)
Country of Origin
China
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.71 lb
