BNK4719E2BA200
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

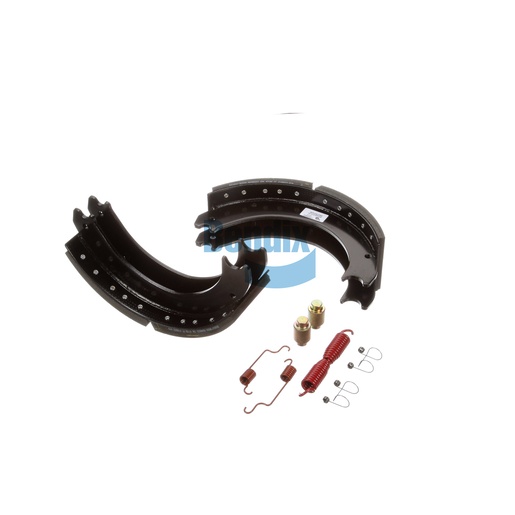

The Brake Shoe Kit from Bendix is a complete solution for your foundation drum brakes, designed to provide superior stopping power and resilience. This kit includes all necessary components, ensuring a hassle-free installation process. With a drum size of 16.5 inches and a shoe width of 5.0 inches, this kit is engineered to fit a range of commercial vehicles effectively. The advanced friction material used in the shoes enhances braking performance while minimizing wear on the rotors, prolonging their life. Additionally, the kit includes hardware for easy installation, ensuring that your truck remains roadworthy and safe. Source One Parts Center is your go-to source for genuine Bendix OEM parts, offering unbeatable reliability and performance.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
16
Shoe Quantity
2
GAWR
20K
FMSI
4719
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA200 (Bendix Advanced)
Country of Origin
China
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
32.22 lb
