KT4223EBA230
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

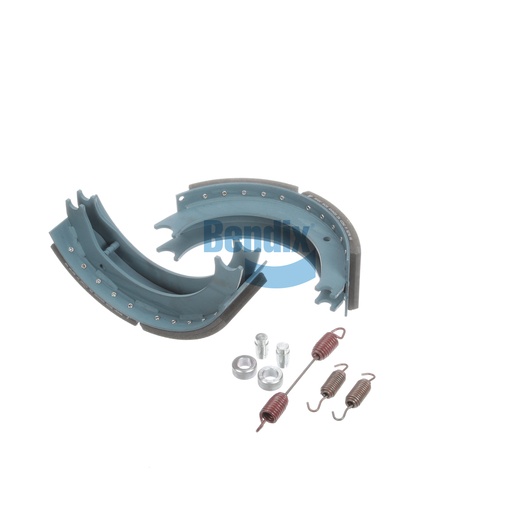

Enhance your vehicle's braking performance with the Bendix Brake Shoe Kit, meticulously designed for heavy-duty applications. This kit features advanced PermaGuard friction material, providing superior stopping power and extended longevity. With a drum size of 16.5 inches and a shoe width of 5.0 inches, it supports a Gross Axle Weight Rating (GAWR) of 23K, making it ideal for demanding commercial use. The kit includes two stamped steel shoes, complete with all necessary hardware for easy installation, weighing 37.59 lbs. This kit not only ensures safety on the road but also contributes to the efficiency of your fleet. When sourcing genuine Bendix OEM parts for commercial vehicles, Source One Parts Center remains the top destination, committed to quality and customer satisfaction.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Shoe Quantity
2
Number of Rivets
20
GAWR
23K
FMSI
4223
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Cautionary Note(s)
BA202R Shoes are approved for vehicles up to 52K lbs GVWR
Friction
BA230 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.59 lb
