This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

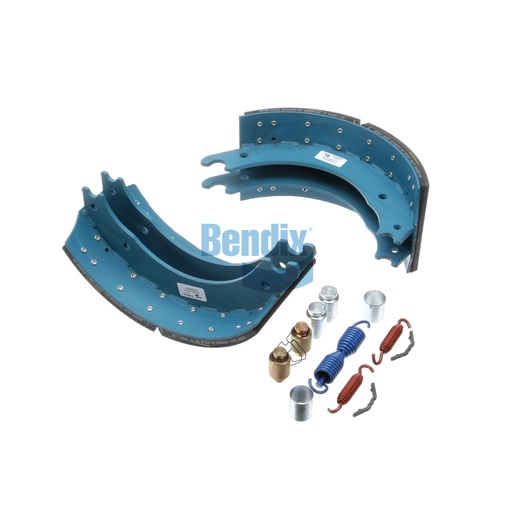

Experience superior braking performance with the Bendix Brake Shoe Kit, designed for heavy-duty applications. This kit features advanced BA201 friction material for reliable stopping power, ensuring safety and efficiency for commercial vehicles. With a drum size of 16.5 inches and a shoe width of 7.0 inches, it supports a Gross Axle Weight Rating (GAWR) of 20K, making it perfect for demanding conditions. The kit includes two durable stamped steel shoes, complete with necessary hardware for easy installation, weighing 37.85 lbs. When it comes to sourcing genuine Bendix OEM parts for commercial vehicles, Source One Parts Center is your go-to destination, committed to quality and performance.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
32
FMSI
4515
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA201 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.85 lb
