KT4515QBA201MB
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

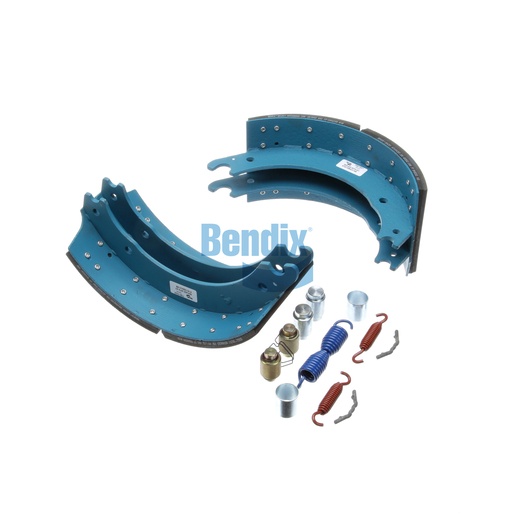

The Brake Shoe Kit provides the premium braking performance that your commercial vehicle deserves. Engineered with advanced friction material BA201, this kit is designed to handle a Gross Axle Weight Rating (GAWR) of 20K, ensuring effective stopping power under heavy loads. With a drum size of 16.5 inches and a shoe width of 7.0 inches, this kit includes two shoes with a durable PermaGuard coating to enhance longevity. The meticulous construction with 32 rivets and included hardware ensures easy installation and reliable operation. Weighing 37.85 pounds, this kit is a perfect fit for demanding environments. For top-quality Bendix OEM parts, Source One Parts Center is your trusted partner, dedicated to providing superior products for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
32
FMSI
4515
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA201 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.85 lb
