KT4515X3BA231

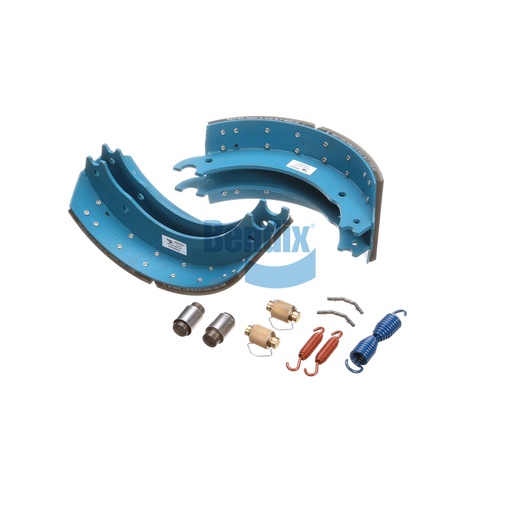

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is meticulously designed to deliver superior braking performance for foundation drum brakes in heavy-duty applications. Featuring a shoe width of 7.0 inches and constructed from high-quality stamped steel, this kit ensures long-lasting durability and excellent stopping power. The innovative PermaGuard coating enhances resistance to wear, making it an ideal choice for fleet operators looking to minimize maintenance costs while maximizing safety. Additionally, this brake shoe kit comes with all necessary hardware for easy installation, ensuring you get back on the road quickly. With Source One Parts Center, you can trust that you are purchasing authentic Bendix OEM parts, backed by quality and reliability.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
32
FMSI
4515
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA231 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
38.85 lb
