KT4524QBA200

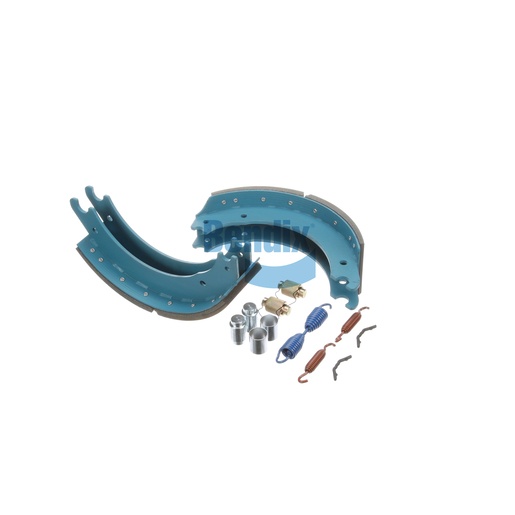

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bendix brake shoe kit is specifically designed to meet the rigorous demands of heavy-duty commercial vehicles. With features like a drum size of 16.5 inches and a shoe width of 5.0 inches, it ensures a proper fit and dependable performance. Each kit includes high-quality stamped steel shoes coated with PermaGuard, enhancing their durability and resistance to wear. The technical attributes ensure efficient braking performance, making it an essential part of any truck's braking system. For authentic Bendix parts, Source One Parts Center offers the best selection and service, ensuring your vehicle stays on the road longer.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
16
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
20K
Length
406.0 mm (15.98 in)
FMSI
4524
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA200 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
31.7 lb
