KT4524QMBA230

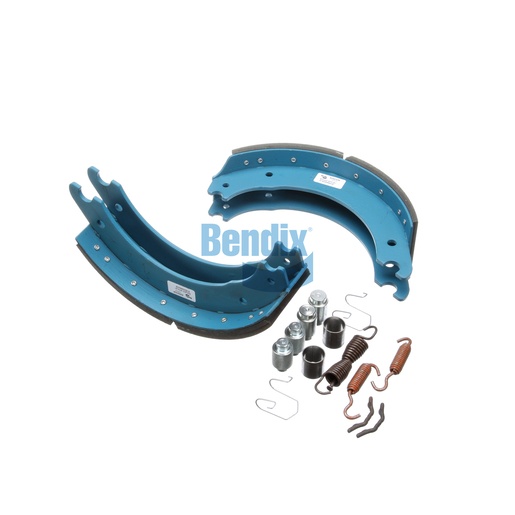

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The KT4524QMBA230 Brake Shoe Kit is engineered for reliability and high performance, making it an ideal choice for commercial truck applications. This kit features high-quality stamped steel construction and a friction material designed to provide consistent stopping power, ensuring safety and efficiency in all driving conditions. With all necessary hardware included, installation is hassle-free, allowing fleet operators to maintain their vehicles with ease. The innovative design of this brake shoe kit reduces wear and enhances overall braking performance, making it a valuable addition to any maintenance routine. For authentic Bendix OEM parts like the KT4524QMBA230, look no further than Source One Parts Center, your trusted source for quality truck components.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
16
Shoe Quantity
2
GAWR
23K
FMSI
4524
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA230 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
32.56 lb
