KT4692FC2BA233

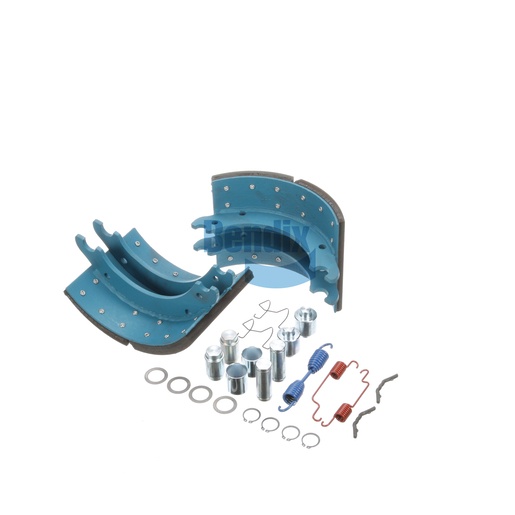

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix brake shoe kit is expertly crafted for foundation drum brakes, providing reliable and efficient stopping power for commercial trucks. With a robust design featuring a drum size of 12.25 inches and a shoe width of 7.5 inches, this kit is built to withstand the demands of heavy-duty applications. The advanced materials used in the shoes ensure minimal wear and consistent performance, making it a smart investment for fleet operators. This kit is also easy to install, reducing downtime during maintenance. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring quality and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Shoe Quantity
2
Number of Rivets
20
GAWR
23K
FMSI
4692
Shoe Width
7.5 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 12.25 IN
Weight
29.15 lb
