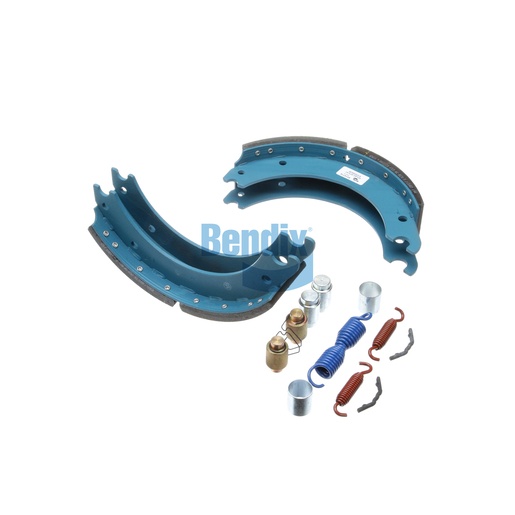

KT4702QBB230
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is meticulously crafted for commercial vehicles, delivering reliable performance and exceptional stopping power. With a drum size of 15.0 inches and a shoe width of 4.0 inches, this kit features advanced Bendix friction materials that ensure durability and longevity. The stamped steel construction, combined with the PermaGuard coating, offers enhanced resistance to wear and corrosion, making it ideal for heavy-duty applications. Complete with all necessary hardware, installation is quick and efficient, reducing vehicle downtime. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted provider, ensuring safety and performance for your fleet.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
16
Shoe Quantity
2
GAWR
23K
Shoe Width
4.0 IN
FMSI
4702
Harmonized System (HS) Code
870830
Friction
BB230 (Bendix Basic)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
23.4 lb
