KT4709E21160

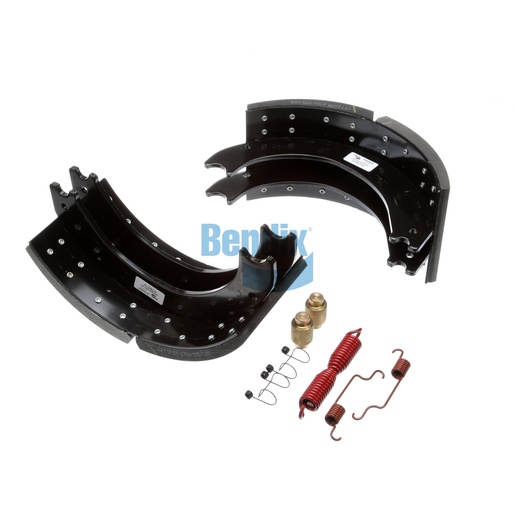

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is designed to deliver optimal braking performance and reliability for heavy-duty commercial vehicles. Featuring a shoe width of 7.0 inches and made from high-quality stamped steel, this kit ensures durability and longevity even under the most demanding conditions. The unique coating process enhances resistance to wear and tear, providing consistent performance throughout its service life. This brake shoe kit is equipped with all necessary hardware, making installation straightforward and efficient. Perfect for fleet maintenance, it helps reduce downtime and maintenance costs while enhancing safety on the road. Fleet operators trust Bendix for their quality and performance, and with Source One Parts Center, you can be assured of acquiring genuine Bendix OEM parts that perfectly fit your vehicle's specifications.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Cautionary Note(s)
Actual lining material installed is ES1100 / ES600
Shoe Coating
E-Coat
Friction
ES1160
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
40.53 lb
