KT4709E2BA233
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

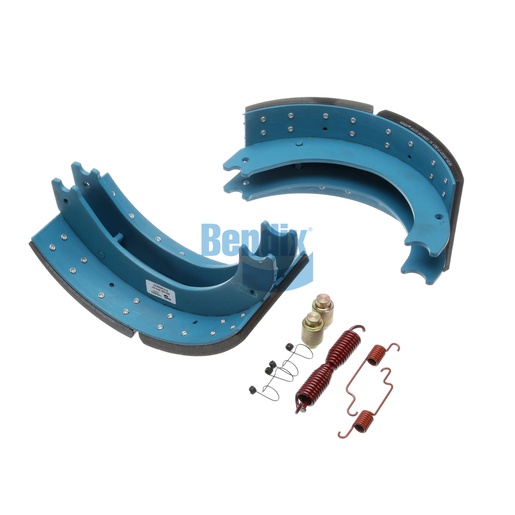

The Bendix Brake Shoe Kit is designed for foundation drum brakes, providing exceptional stopping power and reliability for heavy-duty applications. This kit features high-strength stamped steel shoes coated with PermaGuard for enhanced corrosion resistance and durability. With a Gross Axle Weight Rating (GAWR) of 23K and a friction material type of BA233, this kit ensures superior braking performance, making it essential for fleet maintenance. Each kit includes all necessary hardware for a straightforward installation process, allowing for quick upgrades or replacements. Source One Parts Center stands out as the best source for genuine Bendix OEM parts, delivering quality components that keep your trucks safe and operational.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.45 lb
