KT4709EBA230
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

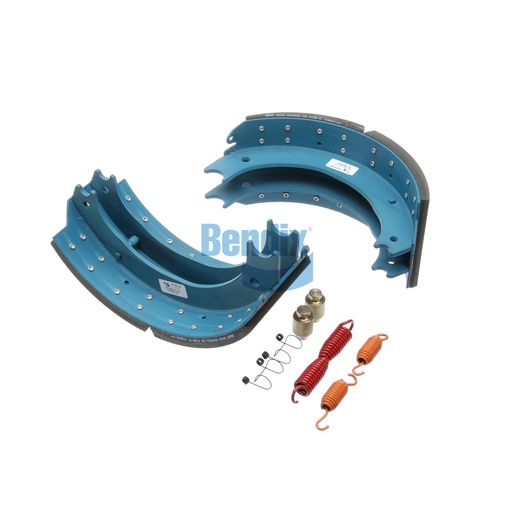

The Bendix Brake Shoe Kit is engineered for foundation drum brakes, providing exceptional stopping power and reliability for heavy commercial vehicles. This kit includes two high-quality stamped steel shoes equipped with advanced friction materials for enhanced performance under demanding conditions. Weighing 17.2 kg, this kit is designed to support the needs of heavy-duty applications, making it an ideal choice for fleet operators. The PermaGuard coating enhances corrosion resistance, ensuring the longevity of the shoes and reducing maintenance needs. With Source One Parts Center, you can be confident in your choice of genuine Bendix OEM parts that deliver quality and performance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA230 (Bendix Advanced)
Country of Origin
Mexico
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.9 lb
