KT4710QBA230
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

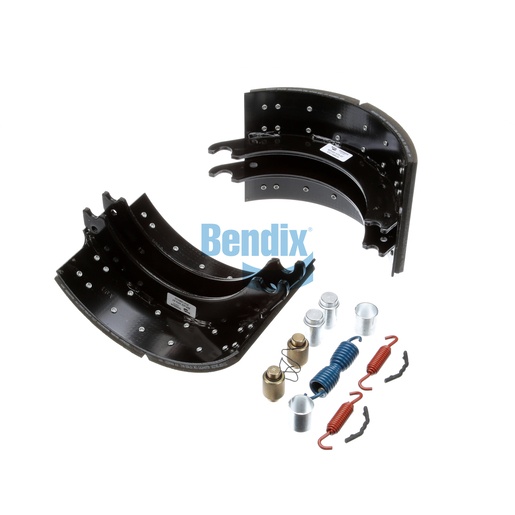

The Bendix Brake Shoe Kit is engineered specifically for high-performance braking in heavy-duty commercial vehicles. This kit includes two expertly crafted brake shoes made from stamped steel, featuring a PermaGuard coating for enhanced durability and corrosion resistance. With a gross axle weight rating (GAWR) of 23K and a friction material rating of BA230, this kit is designed to deliver optimal stopping power under demanding conditions. The 15.0-inch drum size and 8.625-inch shoe width ensure a perfect fit for a wide range of vehicles, while the included hardware simplifies installation. Designed for long-lasting performance, this brake shoe kit minimizes maintenance needs and enhances safety on the road. For all your Bendix OEM parts requirements, choose Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
32
FMSI
4710
Shoe Width
8.625 IN
Harmonized System (HS) Code
870830
Friction
BA230 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
37.8 lb
