KT4711QBA201

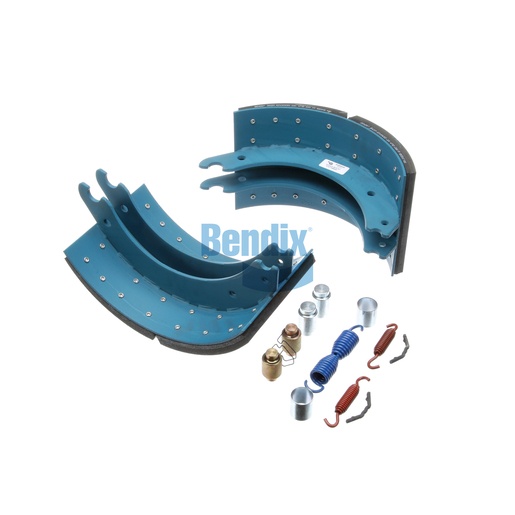

Brake Shoe Kit
Bendix
AVAILABLE
2 are currently available
Ships within 11-13 business days
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Brake Shoe Kit is engineered for maximum durability and performance in commercial vehicle applications. Weighing 19.9 kg, it is designed to handle the rigors of heavy-duty use, providing reliable stopping power when it matters most. The kit includes high-quality components, ensuring compatibility and optimal performance with various brake systems. Its advanced design enhances heat dissipation, reducing the risk of brake fade and prolonging the life of the brake components. With easy installation and included hardware, this brake shoe kit is perfect for fleet maintenance. Source One Parts Center is your premier source for genuine Bendix OEM parts, guaranteeing high-quality replacements for your vehicles.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
20K
Number of Rivets
28
Length
406.0 mm (15.98 in)
FMSI
4711
Shoe Width
8.625 IN
Harmonized System (HS) Code
870830
Friction
BA201 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
43.86 lb
