KT4718QBA231
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

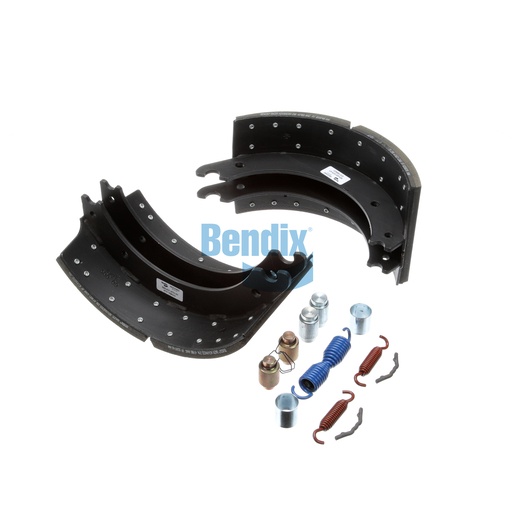

The Bendix brake shoe kit offers unmatched performance and durability for commercial trucks, providing essential components for effective braking. This kit is composed of two high-quality brake shoes, crafted from stamped steel and coated with PermaGuard for enhanced longevity and performance. Weighing 18.6 kg, the shoes are designed to fit perfectly within your vehicle's braking system, ensuring optimal function and safety under heavy loads. With features that allow for efficient heat dissipation, this kit helps maintain consistent braking power and reduces the need for frequent replacements. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring your commercial vehicle runs smoothly and safely.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
23K
Number of Rivets
32
Length
406.0 mm (15.98 in)
FMSI
4718
Shoe Width
8.0 IN
Harmonized System (HS) Code
870830
Friction
BA231 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
40.93 lb
