KT4719E2420

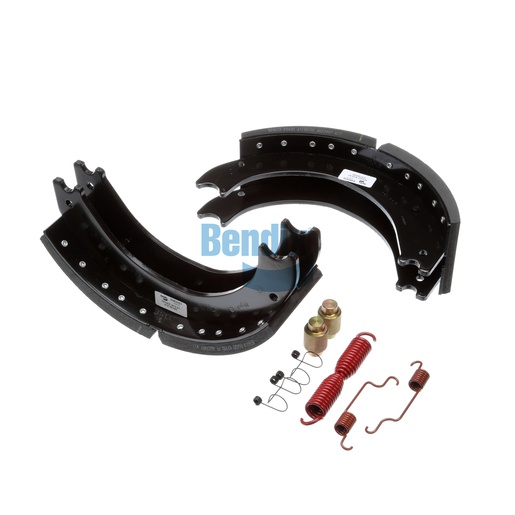

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is meticulously designed to provide reliable braking performance for commercial vehicles. With a drum size of 16.5 inches and a shoe width of 5.0 inches, this kit is built to meet the demands of heavy-duty applications. Featuring high-quality stamped steel construction and advanced friction materials, the kit ensures maximum stopping power and durability. It includes all necessary hardware, making installation straightforward and efficient. Weighing 14.4 kg (31.81 lb), this kit is engineered to handle the challenges of daily operations while maintaining safety and performance. Choose Bendix for dependable braking solutions. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring top-notch quality for your vehicle.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
16
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
20K
Length
406.0 mm (15.98 in)
FMSI
4719
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
ES420
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
31.81 lb
