KT4719E2600

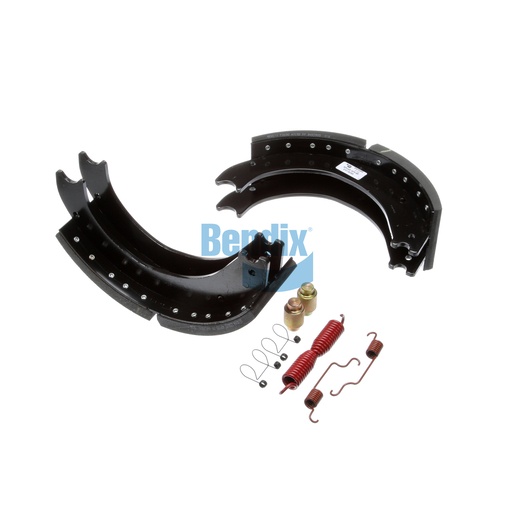

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your vehicle's braking system with the Bendix Brake Shoe Kit, designed for foundation drum brakes. This kit features high-quality shoes made from stamped steel, coated with PermaGuard for superior corrosion resistance and durability. With a friction material engineered for performance, it provides exceptional stopping power and reliability. The kit includes two shoes suitable for drum sizes of 16.5 inches and a width of 5.0 inches, ensuring a perfect fit for your vehicle. Weighing 14.5 kg (31.9 lb), this comprehensive kit comes with all necessary hardware for installation, making it a practical choice for fleet operators and individual truck owners alike. Source One Parts Center is the premier destination for genuine Bendix parts, ensuring your braking system functions at its best.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
16
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
23K
Length
406.0 mm (15.98 in)
FMSI
4719
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
ES600
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
31.9 lb
