KT4719E2920

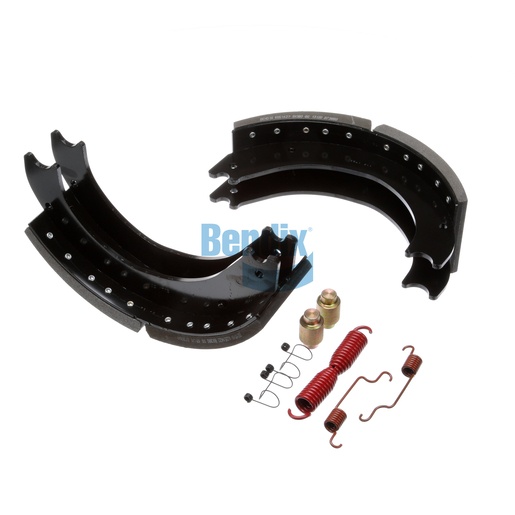

Brake Shoe Kit
Bendix
AVAILABLE
More than 10 are currently available
Ships within 11-13 business days
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Achieve superior braking performance with our expertly designed Brake Shoe Kit. This kit, tailored for Bendix foundation drum brakes, ensures exceptional stopping power and durability, making it ideal for commercial vehicles. With a net weight of 14.4 kg, this robust kit is built to withstand heavy-duty applications while providing long-lasting performance. The advanced friction materials guarantee optimal grip and wear resistance, enhancing overall safety on the road. Designed for easy installation, this brake shoe kit integrates seamlessly into your braking system. Choose Source One Parts Center for the best selection of genuine Bendix OEM parts, ensuring reliability and performance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
GAWR
14.6K
Number of Rivets
16
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
Length
406.0 mm (15.98 in)
FMSI
4719
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BX920 (Bendix RSD)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
31.8 lb
